Resources-Oriented Design

What is REST?

REST (Representational State Transfer) is an architectural style for building web services that leverages the existing infrastructure and protocols of the World Wide Web. Introduced by Roy Fielding in 2000, REST defines a set of constraints that, when applied, create scalable, maintainable, and performant web services.

Core REST Principles

1. Client-Server Architecture: Clear separation between client and server responsibilities
2. Stateless: Each request contains all information needed to process it
3. Cacheable: Responses should be explicitly marked as cacheable or non-cacheable
4. Uniform Interface: Standard methods and consistent resource identification
5. Layered System: Architecture can include intermediate layers (proxies, gateways)
6. Code on Demand (optional): Server can send executable code to extend client functionality

Why REST Became Popular

• Simplicity: Uses familiar HTTP methods and status codes
• Scalability: Stateless nature enables horizontal scaling
• Flexibility: Works with any data format (JSON, XML, HTML)
• Web-friendly: Leverages existing web infrastructure
• Discoverability: Resources are self-descriptive through URIs

Key Insight

REST isn’t a technology or protocol - it’s an architectural style that guides how you design web services to be simple, scalable, and maintainable.

---

Resources in REST

The fundamental concept in any RESTful API is the resource. One of the first steps in developing a RESTful Web service is designing the resource model. The resource model identifies and classifies all the resources the client uses to interact with the service.

Tip

Design your API with the API consumer in mind!

Each resource MUST make sense from the perspective of the API consumer. Beware of simply copying your internal model. Do not leak irrelevant implementation details out to your API.

What Is a Resource?

A resource is simply a “thing” that your application manages - any piece of data or functionality that clients need to interact with. Think of resources as the nouns in your system.

---

Examples of Resources

Instead of thinking abstractly, let’s look at concrete examples:

E-commerce System:

• Product - A specific item for sale (iPhone, laptop, book)
• User - A customer account
• Order - A purchase transaction
• Cart - A shopping cart containing items

Social Media Platform:

• User - A person’s profile
• Post - A status update, photo, or article
• Comment - A response to a post
• Like - A user’s approval of content

Planetary Database:

• Planet - A celestial body (Earth, Mars, Jupiter)
• Moon - A natural satellite
• Star - The central star of a solar system

Resource Identification with URLs

Each resource gets a unique URL that identifies it:

GET /api/planets/123        # Planet with ID 123
GET /api/users/456          # User with ID 456
GET /api/orders/789         # Order with ID 789

http

Key insight: The URL tells you what (the resource), and the HTTP verb tells you what to do with it.

---

Resource Types

1. Individual Resources

A single, specific instance of something:

GET /api/planets/earth      # The Earth specifically
GET /api/users/john-doe     # John Doe's profile
GET /api/orders/12345       # Order number 12345

http

Characteristics:

• Represents one specific thing
• Has unique identifier (ID, name, etc.)
• Contains detailed information about that thing

2. Collection Resources

A group of related resources of the same type:

GET /api/planets           # All planets
GET /api/users             # All users
GET /api/orders            # All orders

http

Characteristics:

• Contains multiple resources of the same type
• Usually returns a list or array
• Supports operations like create new items

Collections are Resources Too!

The collection itself is a resource - you can GET it, and often POST to it to create new items.

3. Sub-Collections

Collections that belong to a parent resource:

GET /api/planets/123/moons     # All moons of planet 123
GET /api/users/456/orders      # All orders by user 456
GET /api/orders/789/items      # All items in order 789

http

Why use sub-collections?

• Express relationships between resources
• Show ownership or containment
• Provide scoped access to related data

---

Resource-Oriented Thinking

Before: RPC-Style (Action-Oriented)

POST /api/getPlanet          # What action to perform
POST /api/createUser
POST /api/updateOrder
POST /api/deleteProduct

http

Focus: What functions can I call?

After: REST-Style (Resource-Oriented)

GET    /api/planets/123      # What thing to work with
POST   /api/users            # HTTP verb says what to do
PUT    /api/orders/456
DELETE /api/products/789

http

Focus: What things does my system have?

The Mental Shift

Ask yourself:

1. What are the “things” in my system? (Resources)
2. How are these things related? (Sub-resources, relationships)
3. What operations make sense on each thing? (HTTP verbs)

Don’t ask:

• “What functions should I expose?”
• “What can users do?”

---

Designing Your Resource Model

Step 1: Identify Your Resources

Look at your system and find the nouns:

“Users can view planets, add planets to favorites, and see details about each planet’s moons.”

Resources identified:

• User (person using the system)
• Planet (celestial body)
• Favorite (user’s saved planets)
• Moon (satellite of a planet)

Step 2: Determine Resource Relationships

User
├── /favorites (sub-collection of user's favorite planets)
└── /profile (singleton - user's profile info)

Planet
├── /moons (sub-collection of planet's moons)
└── /atmosphere (singleton - atmospheric data)

Moon (belongs to a planet)

plaintext

Step 3: Map to URLs

# Users
GET /api/users                    # All users
GET /api/users/123                # Specific user
GET /api/users/123/favorites      # User's favorite planets
GET /api/users/123/profile        # User's profile

# Planets
GET /api/planets                  # All planets
GET /api/planets/earth            # Earth specifically
GET /api/planets/earth/moons      # Earth's moons
GET /api/planets/earth/atmosphere # Earth's atmosphere

# Moons (as sub-resources)
GET /api/planets/earth/moons/luna # Earth's moon Luna

http

---

Common Resource Design Patterns

1. Hierarchical Resources

/api/universities/123/departments/456/courses/789

http

When to use: Clear ownership/containment relationships

2. Flat Resources with References

/api/courses/789
Response: {
  "id": 789,
  "name": "Computer Science 101",
  "department_id": 456,
  "university_id": 123
}

http

When to use: Resources can exist independently

3. Singleton Resources

/api/users/123/profile       # User only has one profile
/api/planets/earth/core      # Planet only has one core

http

When to use: One-to-one relationships, settings, configurations

The Resource Model

---

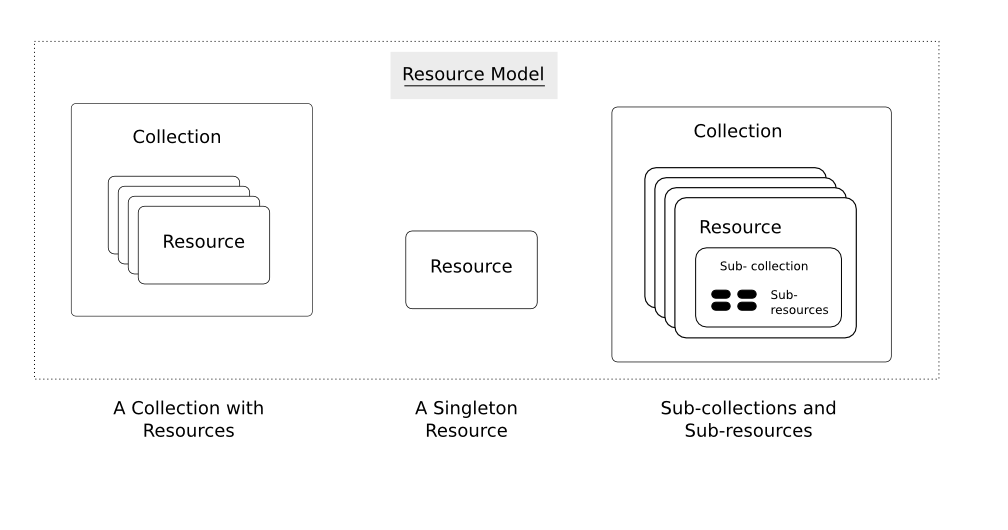

The diagram below illustrates the aforementioned concepts of in a RESTful API.

We call information that describes available resources types, their behavior, and their relationships the resource model of an API. The resource model can be viewed as the RESTful mapping of the application data model.

Find more details in the chapters:

• Collection Resources
• Filtering, sorting, field selection and paging
